Terminal Block
T Type Terminal Block (Single Pole)
Material:
●Plastic: polycarbonate
●Insert: brass

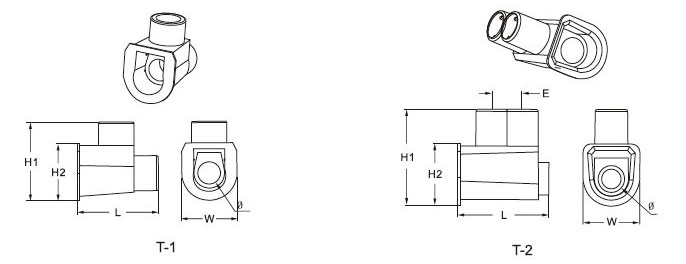

| Item No . | Section size (mm²) | L (mm) | W (mm) | H1 (mm) | H2 (mm) | E (mm) | φ (mm) |
| T-1 | 6 | 19.9 | 13.65 | 19.8 | 14.1 | 5.6 | |
| T-2 | 6 | 21.8 | 14 | 24 | 15.5 | 7.3 | 6.5 |
Material:
●Plastic: polycarbonate
●Insert: brass
| Item No . | Section size (mm²) | L (mm) | W (mm) | H1 (mm) | H2 (mm) | E (mm) | φ (mm) |
| T-1 | 6 | 19.9 | 13.65 | 19.8 | 14.1 | 5.6 | |
| T-2 | 6 | 21.8 | 14 | 24 | 15.5 | 7.3 | 6.5 |
