Terminal Block
LT Type Terminal Block
Material:
Insert: brass or brass nickel plated
Plastic: PA 94V-2 grade, working temperature: -35 to 125℃, short time 140℃.
Voltage : 230~450V
Color: Natural, Grey, Blue

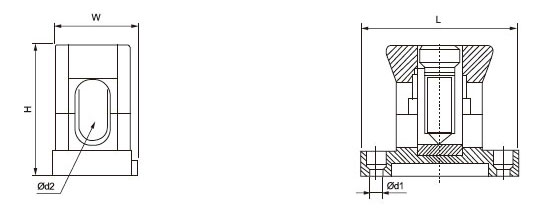

| Item No . | Section size (mm²) | L (mm) | W (mm) | H (mm) | φd1 (mm) | φd2 (mm) | Screw size |
| LT-16 | 16 | 41 | 17 | 32 | 4.3 | 14.5×4.8 | M8 |
| LT-25 | 25 | 47.6 | 20.8 | 37.8 | 4.3 | 17×6.8 | M10 |
| LT-35 | 35 | 55.2 | 24.4 | 42.5 | 4.3 | 19×8.4 | M12 |
| LT-50 | 50 | 65 | 27 | 48.5 | 5 | 22×9.3 | M14 |
| LT-70 | 70 | 66.8 | 29 | 52.5 | 5 | 25×10.5 | M16 |
| LT-95 | 95 | 71 | 33.5 | 56.8 | 5 | 29×12.6 | M18 |
| LT-120 | 120 | 73.5 | 35.8 | 61 | 5 | 33×13.8 | M20 |
