Terminal Block
H-E Type Terminal Block (VDE Standard)12(Pole)
Material:
●Insert: brass
●Plastic: PE, PP or PA
●Color: Natural, White
Technical Data:
●Max. Operating temperature: -30℃~+110℃ for PA
●According to :EN60998-1 EN60998-2-1

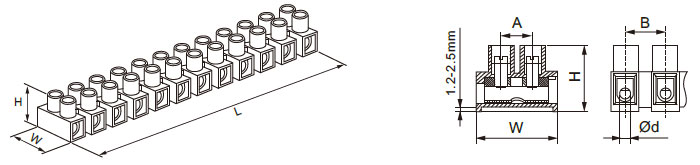

| Item No . | Rated current(A) | Section size (mm²) | L (mm) | W (mm) | H (mm) | A (mm) | B (mm) | φd (mm) |
| H-E8 | 17.5 | 1.5 | 95.37 | 16.9 | 15.05 | 6.3 | 8.2 | 2.9 |
| H-E10 | 24 | 2.5 | 117 | 20.5 | 16.8 | 9.6 | 10.1 | 3.2 |
| H-E12 | 41 | 6 | 140.1 | 23.9 | 18.8 | 10 | 12.2 | 4.2 |
| H-E14 | 57 | 10 | 158 | 25.7 | 25.15 | 10.75 | 13.6 | 5 |
