Terminal Block

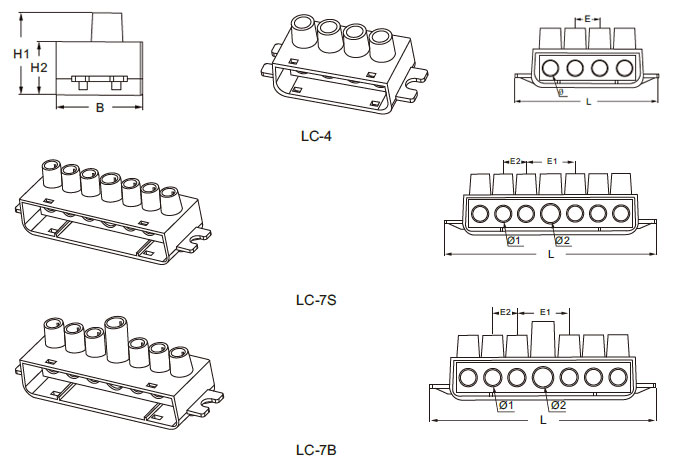

LC Type Terminal Block
Material:
●Plastic: polycarbonate
●Insert: brass
| Item No . | Section size (mm²) | L (mm) | B (mm) | H1 (mm) | H2 (mm) | E1 (mm) | E2 (mm) | E2 (mm) | φ2 (mm) |
| LC-4 | 4×16 | 53.05 | 22.7 | 21.3 | 14 | 9 | 5.4 | ||
| LC-7S | 1×25 + 6×16 | 83.8 | 25.4 | 24.7 | 16.65 | 19.7 | 9 | 5.8 | 7 |
| LC-7B | 1×50 + 6×35 | 110 | 35 | 29 | 21 | 28 | 13 | 8 | 10.5 |
