Terminal Connector
FT Type Terminal Block (12 Pole)
FT series 12 pole terminal blocks are suitable for continuity or branching-off connectors between electric conductors.
Material:
● Insert: Steel
● Plastic: PP
● Color: Black, White
Technical Data:
● Max. Operating temperature:T90 for PP
● According to :EN60998-1 EN60998-2-1
● Voltage: 450V

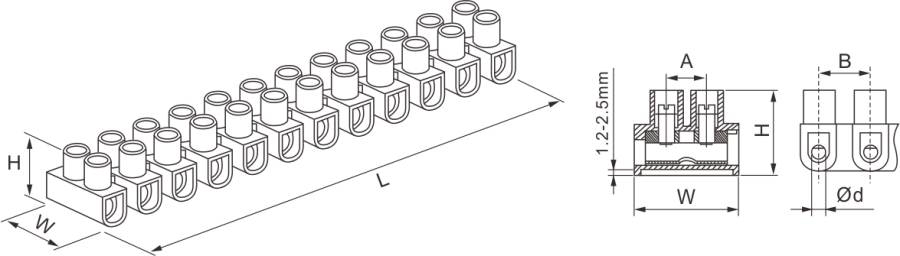

Item No . | Rated | Section size | L | W | H | A | B | φd |
FT-6 | 10 | 6 | 117 | 20 | 16 | 8 | 10 | 3.5 |
FT-10 | 15 | 10 | 137.6 | 23.5 | 17.2 | 10.2 | 12 | 4.0 |
FT-16 | 30 | 16 | 173 | 25 | 21 | 11 | 15 | 5.5 |
