Terminal Block

TB-Type-Terminal-Connector

TB Type Terminal Block

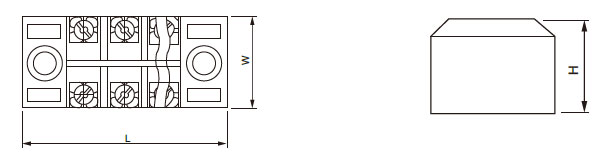

Item No .	Rating	Number of Poles	Wire Section (mm2)	Dimension(mm)
Item No .	Rating	Number of Poles	Wire Section (mm2)	L	W	H
TB-1503	15A 600V	3	0.5-1.5	46.5	22	17.5
TB-1504		4		55.5
TB-1505		5		63.5
TB-1506		6		73.5
TB-1510		10		103
TB-1512		12		128
TB-1520		20		194
TB-2503	25A 600V	3	0.5-2.5	55	30	19
TB-2504		4		67
TB-2505		5		79
TB-2506		6		91
TB-2510		10		140
TB-2512		12		163
TB-4503	45A 600V	3	0.5-4	70	38	23.5
TB-4504		4		85
TB-4505		5		100
TB-4506		6		120.5
TB-4510		10		202
TB-4512		12		222
TBC-602	60A 660V	2	0.5-10	57.4	36.5	31
TBC-603		3		75.2
TBC-604		4		92.6
TBC-606		6		128
TBC-6012		12		234
TBC-1003	100A 660V	3	0.5-25	87	43	37
TBC-1004		4		109
TBC-1006		6		153
TBC-10012		12		285
