Terminal Block

Din-Rail-Type-Terminal-Block

JXB, EK Din Rail Type Terminal Block

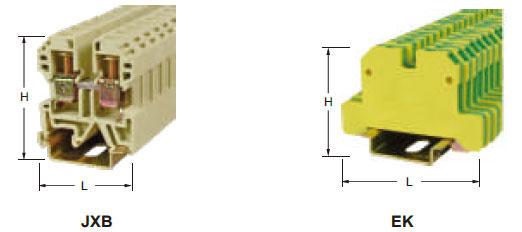

JXB Type Terminal Block

Material:

●Insert: brass
●Plastic: PA

Din Rail Size:35X7.5mm

Item No .	Section size(mm²）	Rated current（A）	Dimension(mm)		Color
Item No .	Section size(mm²）	Rated current（A）	H	L	Color
JXB-2.5/35	0.2-2.5	25	42	41	Grey
JXB-4/35	0.2-4	32	45.5	40
JXB-6/35	0.2-6	41	45.5	40
JXB-10/35	0.5-10	57	45.5	40
JXB-16/35	0.5-16	76	45.5	50
JXB-25/35	6-25	95	53	50
JXB-35/35	10-35	125	63.5	58
JXB-70/35	25-70	192	63.5	75

EK-2.5/35	0.5-2.5	24	44	56	Green and Yelllow
EK-4/35	0.2-4	32	44	56
EK-6/35	0.2-6	41	44	56
EK-10/35	0.5-10	57	44	56
EK-16/35	0.5-16	76	44	56
