Terminal Block

ST Type Shutter Terminal Block (12 Pole)

ST series 12 pole terminal blocks are suitable for continuity or branching-off connectors between electric conductors.

Material:

● Insert: Brass

● Plastic: PA

● Color: Black, White

Technical Data:

● Max. Operating temperature:T110 for PA

● According to :EN60998-1 EN60998-2-1

● Voltage: 450V

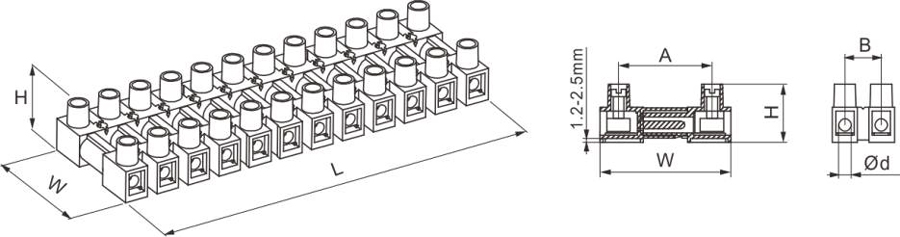

Item No .	Rated current(A)	Section size (mm²)	L (mm)	W (mm)	H (mm)	A (mm)	B (mm)	φd (mm)
ST-9508	10	2.5/4	119	37	16.5	26	10.2	3.5
