Terminal Block

TB4 Type Terminal Block (10 Pole)

TB4 series 10 pole terminal blocks are suitable for continuity or branching-off connectors between electric conductors.

Material:

● Insert: Brass

● Plastic: PC or PA

● Color: Black, White

Technical Data:

● Max. Operating temperature: -5°C~+110°C for PC

● According to :EN60998-1 EN60998-2-1

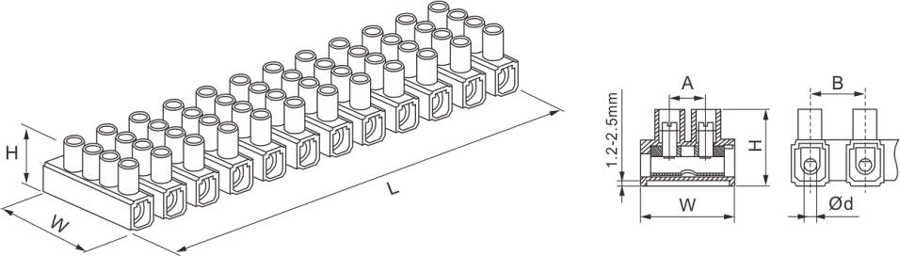

Item No .	Rated current(A)	Section size (mm²)	L (mm)	W (mm)	H (mm)	A (mm)	B (mm)	φd (mm)
TB4-5954	60	16	165	42	23.5	24(11)	17	5.7
