Bus Bar Terminals

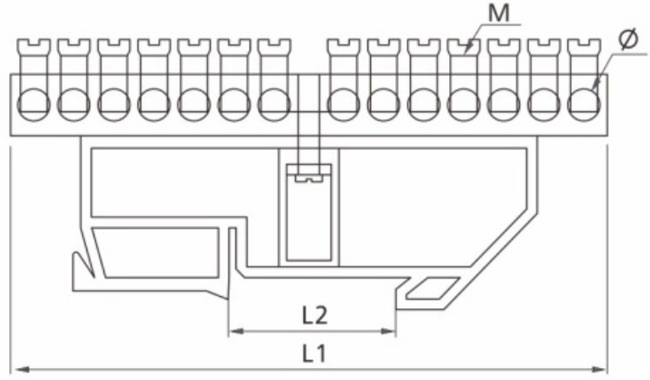

BC-4B Bus Bar Terminals
| ltem No. | No.of holes | Brass size (mm) | L1 (mm) | L2 (mm) | M Screws | φ Diameter | Plastic Color |
| BC-4B04 | 4 | 8×12 | 40.5 | 35×6 | M5 | 7.0 | Blue, Yellow |
| BC-4B06 | 6 | 8×12 | 57.5 | 35×6 | M5 | ||
| BC-4B08 | 8 | 8×12 | 74.5 | 35×6 | M5 | ||
| BC-4B10 | 10 | 8×12 | 91.5 | 35×6 | M5 | ||
| BC-4B12 | 12 | 8×12 | 108.5 | 35×6 | M5 | ||
| BC-4B14 | 14 | 8×12 | 125.5 | 35×6 | M5 | ||
| BC-4B16 | 16 | 8×12 | 142.5 | 35×6 | M5 |
