Bus Bar Terminals
BC-4A Bus Bar Terminals

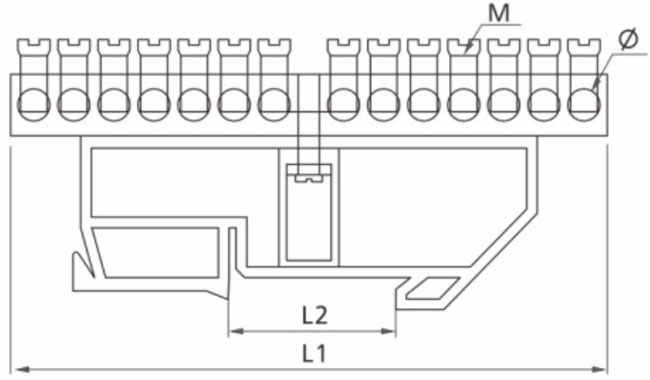

| ltem No. | No.of holes | Brass size (mm) | L1 (mm) | L2 (mm) | M Screws | φ Diameter | Plastic Color |
| BC-4A04 | 4 | 6×9 | 32.3 | 35×6 | M4 | 5.5 | Blue, Yellow |
| BC-4A06 | 6 | 6×9 | 44.7 | 35×6 | M4 | ||
| BC-4A08 | 8 | 6×9 | 57.1 | 35×6 | M4 | ||
| BC-4A10 | 10 | 6×9 | 69.5 | 35×6 | M4 | ||
| BC-4A12 | 12 | 6×9 | 81.9 | 35×6 | M4 | ||
| BC-4A14 | 14 | 6×9 | 94.3 | 35×6 | M4 | ||
| BC-4A16 | 16 | 6×9 | 106.7 | 35×6 | M4 |
