Bus Bar Terminals

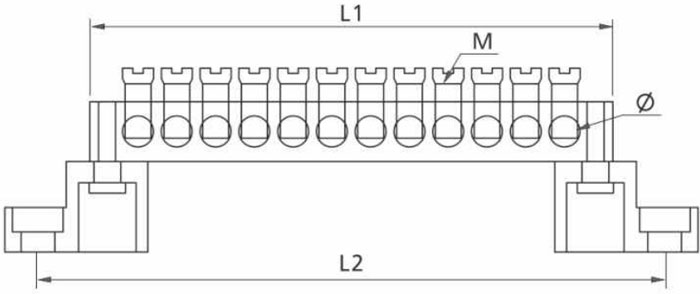

BC-1A Bus Bar Terminals
|
ltem No. |
No.of holes |
Brass size (mm) |
L1 (mm) |
L2 (mm) |
M Screws |
φ Diameter |
Plastic Color |
| BC-1A04 | 4 | 6×9 | 38 | 64 | M4 | 5.5 | Blue, Yellow |
| BC-1A06 | 6 | 6×9 | 52 | 78 | M4 | ||
| BC-1A08 | 8 | 6×9 | 66 | 92 | M4 | ||
| BC-1A10 | 10 | 6×9 | 80 | 106 | M4 | ||
| BC-1A12 | 12 | 6×9 | 94 | 120 | M4 | ||
| BC-1A14 | 14 | 6×9 | 108 | 134 | M4 | ||
| BC-1A16 | 16 | 6×9 | 122 | 148 | M4 | ||
| BC-1A18 | 18 | 6×9 | 136 | 162 | M4 | ||
| BC-1A20 | 20 | 6×9 | 150 | 176 | M4 | ||
| BC-1A24 | 24 | 6×9 | 178 | 204 | M4 |
