Bus Bar Terminals

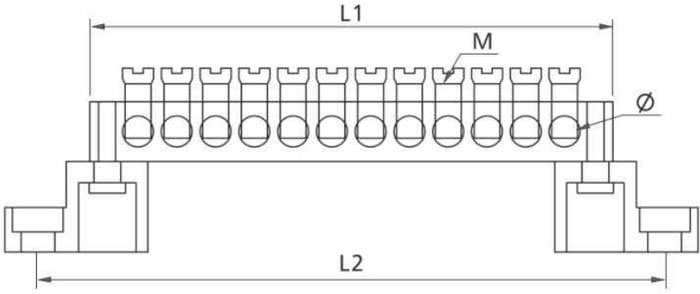

BC-2B Bus Bar Terminals
| ltem No. | No.of holes | Brass size (mm) | L1 (mm) | L2 (mm) | M Screws | φ Diameter | Plastic Color |
| BC-2B04 | 4 | 8×12 | 73.5 | 95.5 | M5 | 6.0 | Blue, Yellow |
| BC-2B06 | 6 | 8×12 | 88.5 | 110.5 | M5 | ||
| BC-2B08 | 8 | 8×12 | 103.5 | 125.5 | M5 | ||
| BC-2B10 | 10 | 8×12 | 118.5 | 140.5 | M5 | ||
| BC-2B12 | 12 | 8×12 | 133.5 | 155.5 | M5 | ||
| BC-2B14 | 14 | 8×12 | 148.5 | 160.5 | M5 | ||
| BC-2B16 | 16 | 8×12 | 163.5 | 185.5 | M5 | ||
| BC-2B18 | 18 | 8×12 | 178.5 | 200.5 | M5 |
