Bus Bar Terminals
BC-2A Bus Bar Terminals

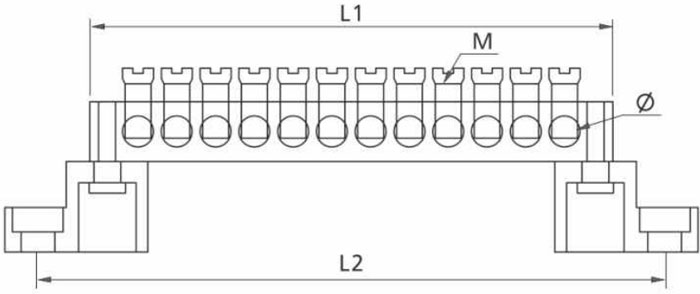

| ltem No. | No.of holes | Brass size (mm) | L1 (mm) | L2 (mm) | M Screws | φ Diameter | Plastic Color |
| BC-2A04 | 4 | 6×9 | 71.5 | 91.5 | M4 | 5.2 | Blue, Yellow |
| BC-2A06 | 6 | 6×9 | 84.5 | 104.5 | M4 | ||
| BC-2A08 | 8 | 6×9 | 97.5 | 117.5 | M4 | ||
| BC-2A10 | 10 | 6×9 | 110.5 | 130.5 | M4 | ||
| BC-2A12 | 12 | 6×9 | 123.5 | 143.5 | M4 | ||
| BC-2A14 | 14 | 6×9 | 136.5 | 156.5 | M4 | ||
| BC-2A16 | 16 | 6×9 | 149.5 | 169.5 | M4 | ||
| BC-2A18 | 18 | 6×9 | 162.5 | 182.5 | M4 |
