Bus Bar Terminals
BC-1B Bus Bar Terminals

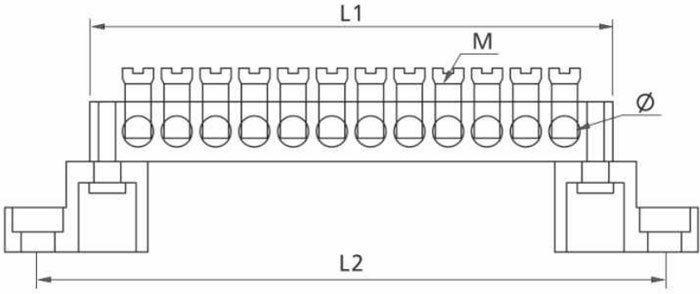

| ltem No. | No.of holes | Brass size (mm) | L1 (mm) | L2 (mm) | M Screws | φ Diameter | Plastic Color |
| BC-1B04 | 4 | 8×12 | 54 | 81 | M5 | 7.0 | Blue, Yellow |
| BC-1B06 | 6 | 8×12 | 74 | 101 | M5 | ||
| BC-1B08 | 8 | 8×12 | 94 | 121 | M5 | ||
| BC-1B10 | 10 | 8×12 | 114 | 141 | M5 | ||
| BC-1B12 | 12 | 8×12 | 134 | 161 | M5 | ||
| BC-1B14 | 14 | 8×12 | 154 | 181 | M5 | ||
| BC-1B16 | 16 | 8×12 | 174 | 201 | M5 | ||
| BC-1B18 | 18 | 8×12 | 194 | 221 | M5 |
