Bus Bar Terminals

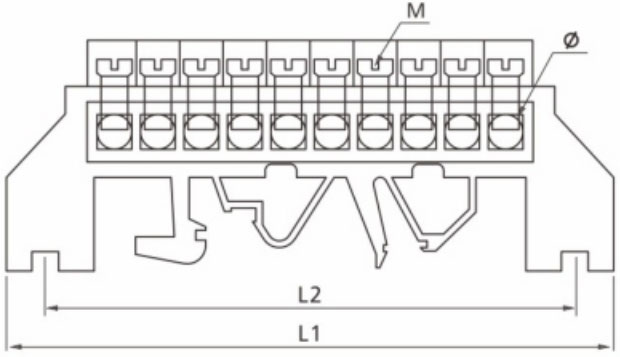

BC-3B Bus Bar Terminals
| ltem No. | No.of holes | Brass size (mm) | L1 (mm) | L2 (mm) | M Screws | φ Diameter | Plastic Color |
| BC-3B06 | 6 | 8×12 | 77.0 | 64.5 | M5 | 7.0 | Blue |
| BC-3B08 | 8 | 8×12 | 94.5 | 80.0 | M5 | ||
| BC-3B10 | 10 | 8×12 | 111.0 | 98.36 | M5 | ||
| BC-3B12 | 12 | 8×12 | 127.5 | 115.3 | M5 | ||
| BC-3B14 | 14 | 8×12 | 144.5 | 132.3 | M5 |
