Pre-insulation Terminal
Ring Shape Naked Terminal

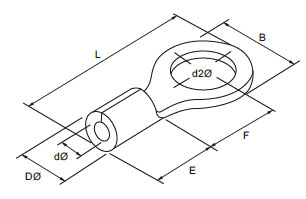

| Item No . | Wire Range mm2 (AWG) | Stud Size | Screw dia. d2Ø(mm) | Dimension (mm) | |||||
| B | L | F | E | DØ | dØ | ||||
| RNB 1.25-3.2 | 0.5-1.5 (22-16) | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 |
| RNBS 1.25-4 | #8 | 4.3 | 6.6 | 14.4 | 6.3 | ||||
| RNBS 1.25-5 | #10 | 5.3 | 8.0 | 15.8 | 7.0 | ||||
| RNBL 1.25-5 | #10 | 5.3 | 9.8 | 18.0 | 8.5 | ||||
| RNB 1.25-6 | 1/4 | 6.4 | 11.6 | 21.8 | 11.1 | ||||
| RNB 1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.1 | ||||
| RNB 1.25-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | ||||
| RNB 1.25-12 | 1/2 | 13.0 | 19.2 | 31.0 | 16.5 | ||||
| RNB 2-3.2 | 1.5-2.5 (16-14) | #4 | 3.2 | 6.6 | 12.3 | 4.3 | 4.8 | 4.1 | 2.3 |
| RNBS 2-4 | #8 | 4.3 | 6.6 | 16.0 | 7.0 | ||||
| RNBS 2-5 | #10 | 5.3 | 8.5 | 16.8 | 7.75 | ||||
| RNB 2-6 | 1/4 | 6.4 | 12.0 | 21.8 | 11.0 | ||||
| RNB 2-8 | 5/16 | 8.4 | 12.0 | 21.8 | 11.0 | ||||
| RNB 2-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | ||||
| RNB 2-12 | 1/2 | 13.0 | 19.2 | 31.0 | 16.5 | ||||
| RNBS 5.5-4 | 4-6 (12-10) | #8 | 4.3 | 7.2 | 15.7 | 5.9 | 6.8 | 5.6 | 3.4 |
| RNB 5.5-5 | #10 | 5.3 | 9.5 | 19.8 | 8.3 | ||||
| RNB 5.5-6 | 1/4 | 6.4 | 12.0 | 25.8 | 13.0 | ||||
| RNB 5.5-8 | 5/16 | 8.4 | 15.0 | 28.0 | 13.7 | ||||
| RNB 5.5-10 | 3/8 | 10.5 | 15.0 | 28.0 | 13.7 | ||||
| RNB 5.5-12 | 1/2 | 13.0 | 19.2 | 32.4 | 16.0 | ||||
