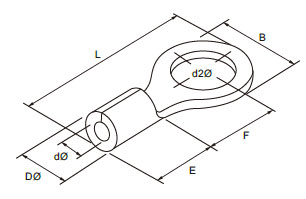

Ring Shape Naked Terminal
| Item No . | Wire Range mm2 (AWG) | Stud Size | Screw dia. d2Ø(mm) | Dimension (mm) | |||||
| B | L | F | E | DØ | dØ | ||||
| RNB 8-4 | 6-10 (8) | #8 | 4.3 | 8.8 | 23.8 | 9.3 | 8.5 | 7.2 | 4.5 |
| RNBS 8-5 | #10 | 5.3 | 8.8 | 23.8 | 11.1 | ||||
| RNBL 8-6 | 1/4 | 6.4 | 12.0 | 23.8 | 9.3 | ||||
| RNBS 8-8 | 5/16 | 8.4 | 15.0 | 29.8 | 13.8 | ||||
| RNBL 8-10 | 3/8 | 10.5 | 15.0 | 29.8 | 13.8 | ||||
| RNBS 8-12 | 1/2 | 13.0 | 20.0 | 33.5 | 15.0 | ||||
| RNB 14-4 | 10-16 (6) | #8 | 4.3 | 12.0 | 29.8 | 13.3 | 10.5 | 9.5 | 5.8 |
| RNB 14-6 | 1/4 | 6.4 | 12.0 | 29.8 | 13.3 | ||||
| RNB 14-8 | 5/16 | 8.4 | 16.0 | 32.8 | 14.5 | ||||
| RNB 14-10 | 3/8 | 10.5 | 16.0 | 32.8 | 14.5 | ||||
| RNB 14-12 | 1/2 | 13.0 | 22.0 | 41.0 | 19.5 | ||||
| RNB 22-6 | 16-25 (4) | 1/4 | 6.4 | 12.2 | 33.2 | 14.6 | 12.0 | 11.5 | 7.7 |
| RNB 22-8 | 5/16 | 8.4 | 16.5 | 33.7 | 13.5 | ||||
| RNB 22-10 | 3/8 | 10.5 | 16.5 | 33.7 | 13.5 | ||||
| RNB 22-12 | 1/2 | 13.0 | 22.0 | 42.5 | 19.5 | ||||
| RNB 38-6 | 35-50 (2) | 1/4 | 6.4 | 15.3 | 39.0 | 18.3 | 14.0 | 13.3 | 9.4 |
| RNBS 38-8 | 5/16 | 8.4 | 15.3 | 39.0 | 18.3 | ||||
| RNBS 38-10 | 3/8 | 10.5 | 15.3 | 39.0 | 18.3 | ||||
| RNB 38-12 | 1/2 | 13.0 | 22.0 | 42.7 | 17.7 | ||||
| RNB 60-6 | 50-70 (1/0) | 1/4 | 6.4 | 22.0 | 49.7 | 20.7 | 18.0 | 15.4 | 11.4 |
| RNB 60-8 | 5/16 | 8.4 | |||||||
| RNB 60-10 | 3/8 | 10.5 | |||||||
| RNB 60-12 | 1/2 | 13.0 | |||||||
| RNB 60-16 | 5/8 | 17.0 | 32.0 | 57.5 | 23.5 | ||||
| RNB 60-18 | 11/16 | 19.0 | |||||||
| RNB 60-20 | 3/4 | 21.0 | |||||||
| RNB 60-22 | 7/8 | 23.3 | |||||||
| RNB 70-10 | 70-95 (2/0) | 3/8 | 10.5 | 24.0 | 51.0 | 20.0 | 19.0 | 17.5 | 13.3 |
| RNB 70-12 | 1/2 | 13.0 | |||||||
| RNB 70-14 | 9/16 | 15.0 | |||||||
| RNB 70-16 | 5/8 | 17.0 | 32.0 | 61.0 | 26.0 | ||||
| RNB 70-20 | 3/4 | 21.0 | |||||||
| RNB 80-12 | 95-120 (3/0) | 1/2 | 13.0 | 27.0 | 54.2 | 20.7 | 20.0 | 19.5 | 14.5 |
| RNB 80-16 | 5/8 | 17.0 | 32.0 | 68.0 | 32.0 | ||||
| RNB 80-18 | 11/16 | 19.0 | |||||||
| RNB 80-20 | 3/4 | 21.0 | |||||||
| RNB 100-12 | 120-150 (4/0) | 1/2 | 13.0 | 28.5 | 55.6 | 20.4 | 21.0 | 21.1 | 16.4 |
| RNB 100-16 | 5/8 | 17.0 | |||||||
| RNB 100-18 | 11/16 | 19.0 | 32.0 | 69.0 | 32.0 | ||||
| RNB 100-20 | 3/4 | 21.0 | |||||||
| RNB 100-22 | 7/8 | 23.0 | |||||||
| RNB 150-16 | 150-185 (250/300) | 5/8 | 17.0 | 36.0 | 66.0 | 23.0 | 27.0 | 26.6 | 19.5 |
| RNB 150-20 | 3/4 | 21.0 | 36.0 | 81.0 | 36.0 | ||||
| RNB 150-24 | 15/16 | 25.0 | |||||||
| RNB 180-16 | 185-240 (300/350) | 5/8 | 17.0 | 38.0 | 69.0 | 24.5 | 28.5 | 28.5 | 21.0 |
| RNB 180-20 | 3/4 | 25.0 | 38.5 | 86.6 | 39.0 | ||||
| RNB 180-24 | 15/16 | 17.0 | |||||||
| RNB 200-16 | 240-300 (400/500) | 5/8 | 21.0 | 44.0 | 72.0 | 24.5 | 31.5 | 32.5 | 24.0 |
| RNB 200-20 | 3/4 | 17.0 | 44.0 | 91.0 | 37.5 | ||||
| RNB 200-24 | 15/16 | 25.0 | |||||||
| RNB 325-16 | 300-400 (500/600) | 5/8 | 17.0 | 50.0 | 88.0 | 33.5 | 35.5 | 37.5 | 28.0 |
| RNB 325-20 | 3/4 | 21.0 | 50.5 | 105.7 | 45.0 | ||||
| RNB 325-24 | 15/16 | 25.0 | |||||||
| RNB 325-27 | 1 | 28.0 | |||||||
