Pre-insulation Terminal

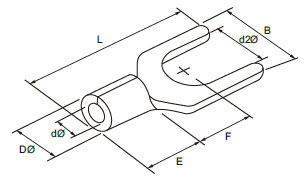

Fork Shape Naked Terminal
| Item No . | Wire Range mm2 (AWG) | Stud Size | Screw dia. d2Ø(mm) | Dimension (mm) | |||||
| B | L | F | E | DØ | dØ | ||||
| SNB 1.25-3.2 | 0.5-1.5 (22-16) | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 |
| SNBS 1.25-3.7 | #6 | 3.7 | 5.7 | 16.0 | 6.5 | ||||
| SNBS 1.25-4 | #8 | 4.3 | 6.4 | 16.0 | 6.5 | ||||
| SNBS 1.25-5 | #10 | 5.3 | 8.1 | 16.0 | 6.5 | ||||
| SNBS 1.25-6 | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | ||||
| SNB 2-3.2 | 1.5-2.5 (16-14) | #4 | 3.2 | 5.7 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 |
| SNBS 2-3.7 | #6 | 3.7 | 5.7 | 16.0 | 6.5 | ||||
| SNBS 2-4 | #8 | 4.3 | 6.4 | 16.0 | 6.5 | ||||
| SNBL 2-4 | #8 | 4.3 | 8.1 | 16.0 | 6.5 | ||||
| SNBS 2-5 | #10 | 5.3 | 8.1 | 16.0 | 6.5 | ||||
| SNBS 2-6 | 1/4 | 6.4 | 9.5 | 16.0 | 6.5 | ||||
| SNBL 2-6 | 1/4 | 6.4 | 12.0 | 22.0 | 11.0 | ||||
| SNBS 5.5-4 | 4-6 (12-10) | #8 | 4.3 | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 |
| SNB 5.5-5 | #10 | 5.3 | 9.0 | 19.5 | 7.5 | ||||
| SNBL 5.5-6 | 1/4 | 6.4 | 12.0 | 25.5 | 12.0 | ||||
| SNB 5.5-8 | 5/16 | 8.4 | 14.0 | 24.5 | 11.5 | ||||
| SNB 8-4 | 6-10 (8) | #8 | 4.3 | 8.7 | 23.0 | 6.0 | 8.5 | 7.2 | 4.5 |
| SNB 8-6 | 1/4 | 6.4 | 12.0 | 24.5 | 5.7 | ||||
| SNB 8-8 | 5/16 | 8.4 | 14.5 | 28.0 | 8.3 | ||||
| SNB 14-6 | 1/4 | 6.4 | 12.0 | 28.0 | 7.5 | 10.5 | 9.0 | 5.8 | |
| SNB 14-8 | 5/16 | 8.4 | 14.0 | 28.0 | 7.5 | ||||
| SNB 22-8 | 5/16 | 8.4 | 14.0 | 34.0 | 9.0 | 12.0 | 11.5 | 7.7 | |
