Pre-insulation Terminal
Long Full Pre-insulation Intermediate Terminal(Nylon)
105℃ 660V Insulating Cover Material: Nylon

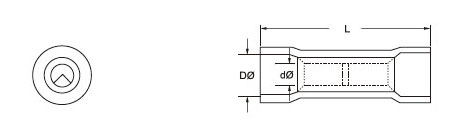

| Item No . | Dimension(mm) | Joint Material | Color | ||||
| L | DØ | CØ | AWG | mm² | |||
| BNYF 0.5 | 20.0 | 2.0 | 1.3 | 26-22 | 0.2-0.5 | Copper Pipe | |
| BNYF 1.25 | 27.3 | 3.2 | 1.7 | 22-16 | 0.5-1.5 | Copper Pipe | |
| BNYF 2 | 27.3 | 3.8 | 2.3 | 16-14 | 1.5-2.5 | Copper Pipe | |
| BNYF 5.5 | 27.3 | 5.3 | 3.4 | 12-10 | 4-6 | Copper Pipe | |
