Ring Shape Naked Terminal
●Size of cable: 150～185mm (American standard 250/300MCB)
●Max. Current=395A

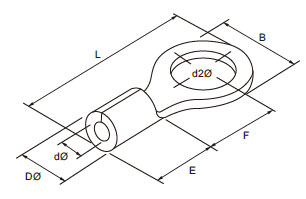

| Item No . | Stud Size | Screw dia. d2φ(mm) | Dimension (mm) | |||||
| B | L | F | E | Dφ | dφ | |||
| RNB 150-8 | 5/16 | 8.4 | 36.0 | 66.0 | 23.0 | 27.0 | 26.6 | 19.5 |
| RNB 150-10 | 3/8 | 10.5 | ||||||
| RNB 150-11 | 7/16 | 11.5 | ||||||
| RNB 150-12 | 1 / 2 | 13.0 | ||||||
| RNB 150-14 | 9/16 | 15.0 | ||||||
| RNB 150-16 | 5/8 | 17.0 | ||||||
| RNB 150-18 | 11/16 | 19.0 | ||||||
| RNB 150-20 | 3 / 4 | 21.0 | 36.0 | 81.0 | 36.0 | |||
| RNB 150-22 | 7/8 | 23.0 | ||||||
| RNB 150-24 | 15/16 | 25.0 | ||||||
| RNB 150-27 | 1 | 28.0 | ||||||
