Terminal Connector
CQ Type Terminal Connector
Material:
● Insert: Brass Tin/Plated
● Plastic: PA66/PC UL94V-0
● Operating Temperature:-40°C~+110°C

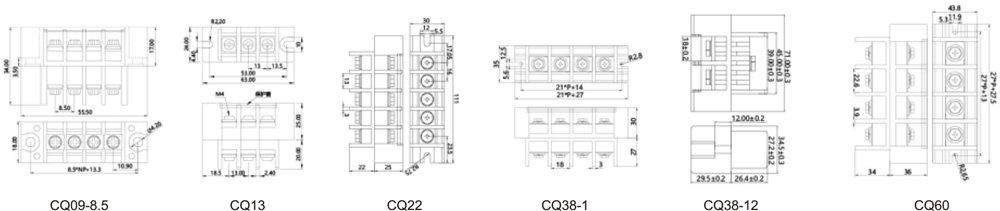

| Item No. | Wire range (mm²) | Rated voltage (V) | Rated current (A) | Insulations Resistance (Ω) |
| CQ09-8.5 | 4 | 300/600 | 35 | ≥6000 |
| CQ13 | 10 | 600 | 57 | |
| CQ22 | 22 | 600 | 75 | |
| CQ38-1 | 35 | 600 | 100 | |
| CQ38-12 | 10-35 | 600 | 100,120 | |
| CQ60 | 6-60 | 600 | 180 |
