Terminal Connector
ACN10 Type Terminal Connector
● Rated voltage:400V
● Rated current:24A
● Voltage resistance: 2.5KV
● Operating Temperature:-30°C~+105°C

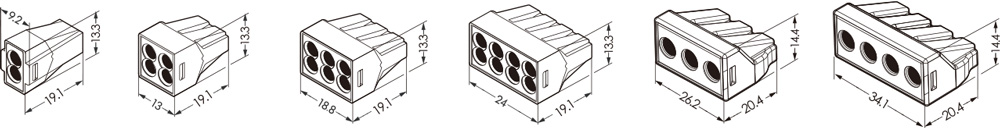

| Item No. | Wire range | Connecting wire numbers | Wire strip length (mm/in) | Color | |
| ACN-102 ACN-104 ACN-106 ACN-108 | 1.5~2.5mm² (16-14AWG) | 2 | 11 / 0.43" | Grey | Grey |
| 4 | |||||
| 6 | |||||
| 8 | |||||
| ACN-102T ACN-104T ACN-106T ACN-108T | 1.5~2.5mm² (16-14AWG) | 2 | 11 / 0.43" | Transparent | Yellow |
| 4 | Orange | ||||
| 6 | Purple | ||||
| 8 | Grey | ||||
| ACN-113T | 1.5~6mm² (16-10AWG) | 3 | 12 / 0.47" | Transparent | Red |
| ACN-114T | 4 | Orange | |||
