Wave Tubing
●Material: PE, PP, PA
●Characteristic: Flexibility is high, able to bear rubing, able to bear suspending schooling to corrodes, fire-retardanting.
●Temperature range: -20℃~+100
●Range of application: Instrument, switch board, device fabrication, project are installed,automobile line buch.

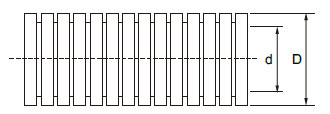

| Size | Internal Diameter d(mm) | External Diameter D(mm) | Packing | Color |
| AD10 | 7.0 | 10.0 | 100 | Black (Other colors available upon request) |
| AD13 | 10.0 | 13.0 | 100 | |
| AD15.8 | 12.0 | 15.8 | 100 | |
| AD18.5 | 14.3 | 18.5 | 100 | |
| AD21.2 | 17.0 | 21.2 | 100 | |
| AD25 | 21.0 | 25.0 | 100 | |
| AD28.5 | 23.0 | 28.5 | 50 | |
| AD34.5 | 29.0 | 34.5 | 50 | |
| AD42.5 | 36.0 | 42.5 | 50 | |
| AD54.5 | 48.0 | 54.5 | 50 |
