Panel Box & Water Proof Box & cable glands

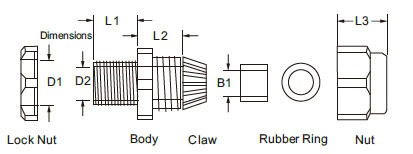

MG Nylon Cable Gland
| Item No . | Threaded entry metric (mm) | Cable rangeφ (mm) | D1 | Panel mounting hole(mm) | L1 | L3 | A (mm) |
| MG-12 | M12×1.25 | 7.6-4.6 | 12 | 12.5 | 8.5 | 19 | 18 |
| MG-16 | M16×1.5 | 10-6 | 16 | 16.5 | 15 | 2 | 22 |
| MG-20 | M20×1.5 | 14-9 | 20 | 20.5 | 15 | 27 | 27 |
| MG-25 | M25×1.5 | 18-13 | 25 | 25.5 | 15 | 33 | 33 |
| MG-32 | M32×1.5 | 32.5-18 | 32 | 33 | 15 | 41 | 41 |
| MG-40 | M40×1.5 | 30-24 | 40 | 41 | 20 | 50 | 50 |
| MG-50 | M50×1.5 | 39-30 | 50 | 51 | 22 | 62 | 61 |
| MG-63 | M63×1.5 | 48.5-40 | 63 | 64 | 25 | 75 | 75 |
