PG Nylon Cable Gland
●Material: PA66 to UL94 V-2 with oil resistant rubber ring
●Color: White, Grey or black

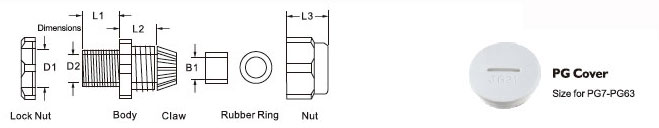

| Item No . | Size (mm) | Suitable Cable | |||||
| D1 | D2 | L1 | L2 | L3 | B1 | ||
| PG-7 | 10.9 | 8.1 | 10.4 | 14.5 | 10.5 | 6.4 | 3.5-6 |
| PG-9 | 15.3 | 12.2 | 9.9 | 15.8 | 17.2 | 8.6 | 4-8 |
| PG-11 | 17.9 | 14.6 | 10.6 | 15.5 | 17.5 | 10.7 | 5-10 |
| PG-13.5 | 20.2 | 16.2 | 10.3 | 17.8 | 17.9 | 13.3 | 6-12 |
| PG-16 | 21.3 | 18.3 | 11.2 | 18.5 | 20.5 | 14.3 | 10-14 |
| PG-19 | 24.7 | 20.5 | 11.4 | 18.6 | 21.8 | 15.5 | 12-15 |
| PG-21 | 26.9 | 21.8 | 11.6 | 18.7 | 23.1 | 16.7 | 13-18 |
| PG-24 | 29.8 | 25.0 | 12.1 | 28.3 | 24.1 | 19.2 | 15-22 |
| PG-29 | 35.1 | 29.8 | 12.4 | 22.6 | 24.8 | 24.8 | 18-25 |
| PG-36 | 44.7 | 37.1 | 12.6 | 25.1 | 26.10 | 30.7 | 22-32 |
| PG-42 | 50.4 | 43.3 | 17.3 | 25.9 | 30.5 | 35.6 | 30-38 |
| PG-48 | 56.1 | 48.2 | 20.9 | 28.1 | 31.5 | 41.4 | 34-44 |
