Wire Connector

Vinyl-Wire-End-Cap(PVC)

Vinyl Wire End Cap(PVC)

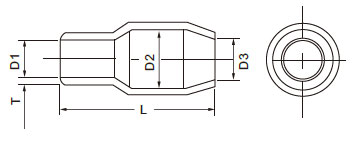

ltem No.	Dimension					For Terminal Spec.(mm)
	D1	D2	D3	L	t	For Terminal Spec.(mm)
V-1.25	2.8	3.3	3.1	13±20	0.6	1.25
V-2	3.3	4.5	3.7	14	0.7	2
V-3.5	4.2	5.7	4.1	17	0.8	3.5
V-5.5	4.8	5.7	5.2	17	0.8	5.5
V-8	6.2	7.2	6.2	19	1.0	8
V-14	7.5	10	8	25±2.4	1.4±0.2	14
V-22	10.5	12	9.5	30	1.2	22
V-38	12.5	14	11.8	34	1.5	38
V-60	15	16.8	13.5	39	1.5	60
V-80	17	19	16	47±30	1.6±0.4	80
V-100	19	22	18	54	1.7	100
V-125	21	24	20	57	1.8	125
V-150	23	24.5	22	65	2.0	150
V-200	27	32	24	65	2.0	200
V-250	29	38	26.5	77±4.0	2.5±0.6	250
V-325	29	38	29	77	2.5	325
V-400	39	44	37	86	2.5	400
V-500	40.5	45	40.5	86	2.5	500
V-630	47	52	45	92	2.5	630
