Wire Connector
Screw On Wire Connector
●Material: UL nylon66, with spring inside.
●Usage: peel wire coat, insert the wire in, then tighten.

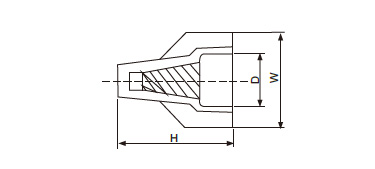

Item No . | Height (mm) | Width (mm) | D (mm) | Suitable Wire | Color |
P1 | 25 | 18.0 | 9 | 4-6mm² (AWG12-10) | Yellow |
P2 | 29 | 22.0 | 11 | 6-12mm² (AWG8-6) | Red |
