Cable Tie，clips & Accessories
Stainless Steel Ball Lock Ties
Description
· The roller-ball type ties have a non-releasable locking mechanism that offers infinite adjustm along the length of the tie. These ties are available in both 316 and 304 grades of stainless steel.
· Operating Temperature:-80℃ to 538℃
Application
The range of stainless steel ties are suitable for use in the most arduous conditions or where additional security, strength, fire resistance and chemical resistance properties. Used in all industries- from mass transit, ship building, oil rigs, mining, chemical industries and many more.

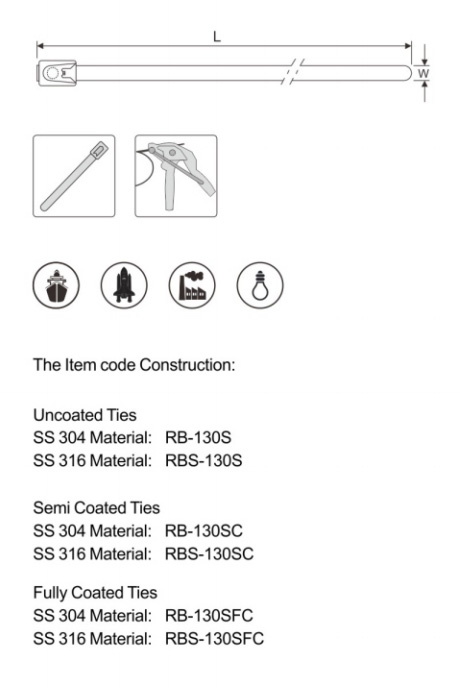

| ltem No. | Length | Width | Thickness | Maxi Bundle | Min. Tensile |
| (L) | (W) | (T) | Diameter | Strength | |
| (mm) | (mm) | (mm) | mm | kg | |
| RB-100S | 100 | 4.6 | 0.25 | 23 | 60 |
| RB-150S | 150 | 4.6 | 0.25 | 37 | 60 |
| RB-200S | 250 | 4.6 | 0.25 | 50 | 60 |
| RB-250S | 300 | 4.6 | 0.25 | 63 | 60 |
| RB-300S | 300 | 4.6 | 0.25 | 76 | 60 |
| RB-460S | 460 | 4.6 | 0.25 | 115 | 60 |
| RB-500S | 500 | 4.6 | 0.25 | 128 | 60 |
| RB-200LH | 200 | 7.9 | 0.25 | 50 | 80 |
| RB-250LH | 250 | 7.9 | 0.25 | 63 | 80 |
| RB-300LH | 300 | 7.9 | 0.25 | 76 | 80 |
| RB-400LH | 400 | 7.9 | 0.25 | 102 | 80 |
| RB-200H | 200 | 10.0 | 0.25 | 50 | 120 |
| RB-250H | 250 | 10.0 | 0.25 | 63 | 120 |
| RB-300H | 300 | 10.0 | 0.25 | 76 | 120 |
| RB-400H | 400 | 10.0 | 0.25 | 102 | 120 |
| RB-500EH | 500 | 12.0 | 0.25 | 128 | 150 |
| RB-600EH | 600 | 12.0 | 0.25 | 154 | 150 |
| RB-700EH | 700 | 12.0 | 0.25 | 180 | 150 |
| RB-800EH | 800 | 12.0 | 0.25 | 193 | 150 |
| Note: Special size could customized | |||||
Properties of 304/316 steel
| Material | Chem. Material Properties |
Operating Temperature |
Flammability |
Operating Temperature |
|
Stainless Steel Type SS304 |
Corrosion resistant Weather resistant Outstanding chemical resistance Antimagnetic |
-80℃to538℃ | Halogen free | |
|
Stainless Steel Type SS316 |
Salt spray resistant Corrosion resistant Weather resistant Outstanding chemical resistance Antimagnetic |
-80℃to538℃ | Halogen free | |
| The Tie | Coating | |||
|
Stainless Steel Type SS316 coated with Polyester |
Salt spray resistant Corrosion resistant Weather resistant Outstanding chemical resistancetimagnetic |
-80℃to538℃ | Halogen free | -50°C to 150℃ |
|
Stainless Steel Type SS316 coated with Nylon |
Salt spray resistant Corrosion resistant Weather resistant Outstanding chemical resistance Antimagnetic |
-80℃to538℃ | Halogen free | -40℃to85℃ |
