Cable Tie，clips & Accessories
Nylon Cable Tie
●Material: Nylon 66,94V-2 certificated by UL . Fire resisting Acid＆erosion control, insulate well nd not apt to age.
●Operating temperature:-35℃ to 85℃.
●Color: Natural(or white, standard color), UV black and other colors are available upon requested.

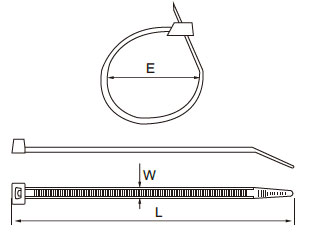

| Item No . | L | W (mm) | Bundle Diameter(mm) | Tensile Strength | ||
| Inch | mm | LBS | KGS | |||
| 2.5×60 | 2.4＂ | 60 | 2.5 | 2-11 | 18 | 8 |
| 2.5×80 | 3.2＂ | 80 | 2-16 | |||
| 2.5×100 | 4.0＂ | 100 | 2-22 | |||
| 2.5×120 | 4.7＂ | 120 | 2-30 | |||
| 2.5×150 | 6.0＂ | 50 | 2-35 | |||
| 2.5×160 | 6.3＂ | 160 | 2-40 | |||
| 2.5×200 | 8.0＂ | 200 | 3-50 | |||
| 3.5×150 | 6.0＂ | 150 | 3.5 | 3-35 | 40 | 18 |
| 3.5×180 | 7.1＂ | 180 | 3-42 | |||
| 3.5×200 | 8.0＂ | 200 | 3-50 | |||
| 3.5×250 | 10＂ | 250 | 3-65 | |||
| 3.5×280 | 11＂ | 280 | 3-70 | |||
| 3.5×300 | 12＂ | 300 | 3-80 | |||
| 3.5×370 | 14.6＂ | 370 | 3-105 | |||
| 4.8×120 | 4.7＂ | 120 | 4.8 | 3-30 | 50 | 22 |
| 4.8×160 | 6.3＂ | 160 | 3-40 | |||
| 4.8×180 | 7.1＂ | 180 | 3-42 | |||
| 4.8×200 | 8.0＂ | 200 | 3-50 | |||
| 4.8×250 | 10＂ | 250 | 3-60 | |||
| 4.8×280 | 11＂ | 280 | 3-70 | |||
| 4.8×300 | 12＂ | 300 | 3-80 | |||
| 4.8×350 | 14＂ | 350 | 3-90 | |||
| 4.8×370 | 14.6＂ | 370 | 3-98 | |||
| 4.8×400 | 16＂ | 400 | 3-105 | |||
| 4.8×430 | 16.9＂ | 430 | 3-120 | |||
| 4.8×450 | 17.7＂ | 450 | 3-130 | |||
| 4.8×500 | 19.7＂ | 500 | 3-150 | |||
| 7.2×150 | 6.0＂ | 150 | 7.2 | 3-35 | 120 | 55 |
| 7.2×200 | 8.0＂ | 200 | 3-50 | |||
| 7.2×250 | 10＂ | 250 | 4-65 | |||
| 7.2×300 | 12＂ | 300 | 4-80 | |||
| 7.6×350 | 14＂ | 350 | 7.6 | 4-90 | 120 | 55 |
| 7.6×400 | 16＂ | 400 | 4-105 | |||
| 7.6×450 | 18＂ | 450 | 4-110 | |||
| 7.6×500 | 20＂ | 500 | 4-150 | |||
| 7.6×530 | 20.9＂ | 530 | 4-160 | |||
| 7.6×550 | 21.6＂ | 550 | 4-165 | |||
| 9.0×400 | 16＂ | 400 | 9.0 | 8-105 | 175 | 79.4 |
| 9.0×450 | 18＂ | 450 | 8-118 | |||
| 9.0×500 | 20＂ | 500 | 8-150 | |||
| 9.0×550 | 21.6＂ | 550 | 8-160 | |||
| 9.0×600 | 23.6＂ | 600 | 8-170 | |||
| 9.0×650 | 25.6＂ | 650 | 8-185 | |||
| 9.0×720 | 28.3＂ | 720 | 10-195 | |||
| 9.0×760 | 28.3＂ | 760 | 10-210 | |||
| 9.0×800 | 31.5＂ | 800 | 10-230 | |||
| 9.0×900 | 35.5＂ | 900 | 10-265 | |||
| 9.0×1020 | 29.4＂ | 1020 | 10-300 | |||
| 9.0×1200 | 47.2＂ | 1200 | 10-370 | |||
| 12×650 | 26.5＂ | 650 | 12 | 14-185 | 250 | 114 |
| 12×900 | 25.5＂ | 900 | 14-265 | |||
