Copper & Alunminium Cable Terminals
MJPT Pre-insulated Sleeves
● An aluminum sleeve with a stop in the middle.
● A black thermoplastic sealed with a flexible elastomer ring.
● Aneutral contact grease in the tube which improve the contact area and protect the aluminum against oxydation.
● The crimping is realized on the plastic part according to the marks on the body ofthe sleeve.
● MJPT sleeves withstand the tests described in the French standard NFC33-021.
● They are water resistant . The mechanical resistant is 50% of the cable breaking load.
● Acolor code permits to check quickly the cable sizes.

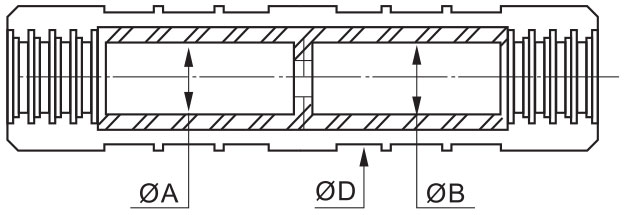

| Item No. | Cross Section (mm²) | Dimension | Color Code | Crimping Die | ||
| ∅A | ∅B | ∅D | ||||
| MJPT16 | 16 | 5.5 | 5.5 | 20 | Blue | E173 |
| MJPT25 | 25 | 6.5 | 6.5 | 20 | Orange | E173 |
| MJPT35 | 35 | 8.0 | 8.0 | 20 | Red | E173 |
| MJPT50 | 50 | 9.0 | 9.0 | 20 | Yellow | E173 |
| MJPT70 | 70 | 10.5 | 10.5 | 20 | White | E173 |
| MJPT95 | 95 | 12.2 | 12.2 | 20 | Grey | E173 |
| MJPT120 | 120 | 14.2 | 14.2 | 25 | Pink | E215 |
| MJPT150 | 150 | 15.5 | 15.5 | 25 | Violet | E215 |
