CPTAU Pre-insulated Bimetal Lug

● These pre-insulated plugs are used to connect a LV insulated overhead lines to the transformer.

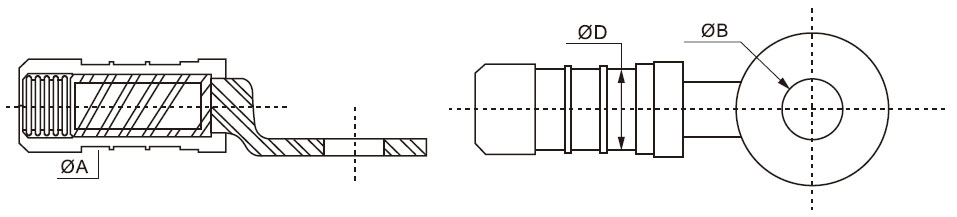

● The lug is composed of an aluminum barrel friction welded to an aluminium or copper palm.

● The insulation of the barrel is made with a black thermoplastic sealed with a flexible elastomer ring.

● Aseal is also installed in, between the copper and the aluminium, in order to avoid galvanic corrosion.

● The crimping is made directly on the plastic part.

●CPTAAU range are in accordance with the test described in the French standard NFC 33 021 and in the E.S.I43-14.

● They are water resistant and pass the dielectric test of 6 KV in water.

● The mechanical resistance is 50%of the cable breaking load.
