Heat-shrinkable Tube

Heat Shrinkable Cable Accessories 10KV

It is applicable to 3.6/6, 6/10, 8.7/15kV 1 core and 3 cores PVC and Power cable withcharacteristics of waterproof, stress control, shielding and insulation.

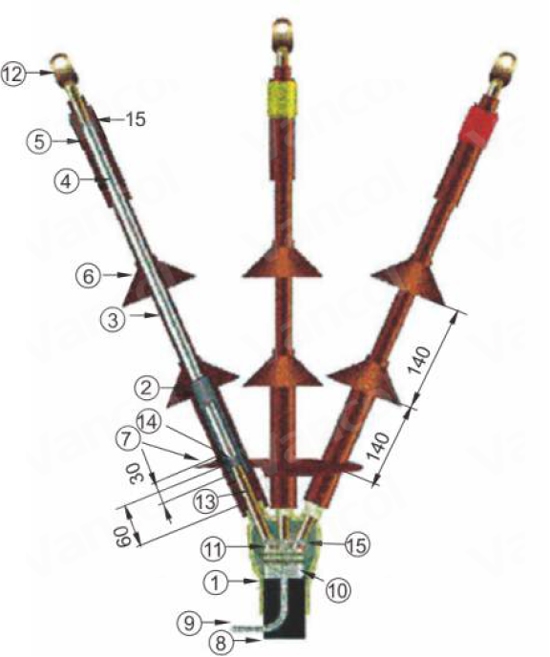

1kV intermediate connection structure diagram

1.Heat shrinkable branch tube

2.Stress pipe

3.Insulatino tube

4.Sealed tube

5. Marking tube

6. Single-hole rain skirt

7. Three-hole rain skirt

8. Cable outer sheath

9.Binding thread

10. Armor

11.Copper binding-wire

12.Terminal block

13. Copper shield

14. Semi-conductive layer

15.Filling glue

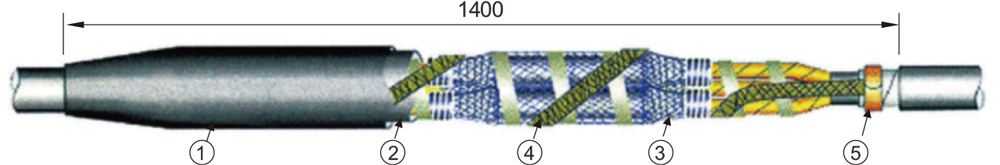

10kV 3 cores heat shrinkable intermediate connection structure diagram

1.Out protecting pipe

2.Inner protecting pipe

3.Earth wire

4.Shielding net

5.Constant force spring
