Cable Tie，clips & Accessories
PXC Type Wire Duct
●Material: made from PVC(gery), good insulation and heat-resisting up to 85℃

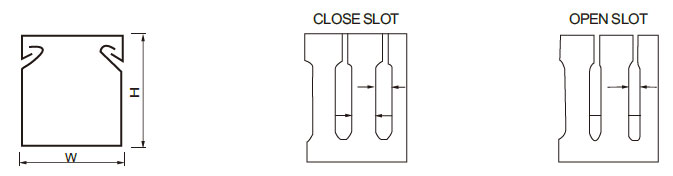

●Struction: made up of duct bottom and lid, with two out-holes design at the bottom.
| Item No . | H×W | Contained wire(1.5 ²) | Length |
| PXC-2015 | 20×15 | 5-10PCS | 2m |
| PXC-2020 | 20×20 | 10-15PCS | |
| PXC-2025 | 20×25 | 10-20PCS | |
| PXC-2525 | 25×25 | 15-25PCS | |
| PXC-3015 | 30×15 | 20-30PCS | |
| PXC-3020 | 30×20 | 30-40PCS | |
| PXC-3025 | 30×25 | 40-50PCS | |
| PXC-3030 | 30×30 | 45-55PCS | |
| PXC-3035 | 30×25 | 50-70PCS | |
| PXC-3040 | 30×40 | 60-80PCS | |
| PXC-3050 | 30×50 | 35-50PCS | |
| PXC-3525 | 35×25 | 45-60PCS | |
| PXC-3530 | 35×30 | 50-70PCS | |
| PXC-3535 | 35×35 | 60-80PCS | |
| PXC-3540 | 35×40 | 45-60PCS | |
| PXC-4025 | 40×25 | 50-70PCS | |
| PXC-4030 | 40×30 | 5-10PCS | |
| PXC-4035 | 40×35 | 60-80PCS | |
| PXC-4040 | 40×40 | 70-90PCS | |
| PXC-4545 | 45×45 | 80-110PCS | |
| PXC-5020 | 50×20 | 45-60PCS | |
| PXC-5025 | 50×25 | 50-70PCS | |
| PXC-5030 | 50×30 | 60-80PCS | |
| PXC-5035 | 50×35 | 70-90PCS | |
| PXC-5040 | 50×40 | 90-120PCS | |
| PXC-5045 | 50×45 | 110-130PCS | |
| PXC-5050 | 50×50 | 120-150PCS | |
| PXC-5055 | 50×55 | 130-160PCS | |
| PXC-5060 | 50×60 | 150-180PCS | |
| PXC-5080 | 50×80 | 180-230PCS | |
| PXC-50100 | 50×100 | 220-250PCS | |
| PXC-6025 | 60×25 | 80-100PCS | |
| PXC-6035 | 60×35 | 90-120PCS | |
| PXC-6040 | 60×40 | 100-130PCS | |
| PXC-6045 | 60×45 | 110-140PCS | |
| PXC-6050 | 60×50 | 120-150PCS | |
| PXC-6060 | 60×60 | 150-180PCS | |
| PXC-6080 | 60×80 | 180-210PCS | |
| PXC-60100 | 60×100 | 230-260PCS | |
| PXC-8025 | 80×25 | 130-160PCS | |
| PXC-8035 | 80×35 | 140-170PCS | |
| PXC-8040 | 80×40 | 150-180PCS | |
| PXC-8045 | 80×45 | 170-200PCS | |
| PXC-8050 | 80×50 | 180-220PCS | |
| PXC-8060 | 80×60 | 220-250PCS | |
| PXC-8080 | 80×80 | 240-290PCS | |
| PXC-80100 | 80×100 | 280-320PCS | |
| PXC-10080 | 100×80 | 280-320PCS | |
| PXC-100100 | 100×100 | 300-400PCS |
