Terminal Connector
JT Type Terminal connectors
General
●JT series terminals connctors is used for branch line " T " connection in the construction and industrial electric equipment when cable trunk can't be cut off, on the basis of advantage of JT1 series T-type connector, it show its highlight of safety protection, and makes a breakthrough in design, This launch if the connector, not only greatly increases the performance/price ratio, but also expands the service range, so at to provide designer with enough imagination space, it stands out in the industry of cable T-type connector.
●The products are in conformity with IEC 60947-7-1, GB1404B.7.1 and JB/9659.1
Technical parameter
| Type | Rated current (A) | Rated voltage (V) | Main line section (mm²) | Branch section (mm²) | Screw diameter | Torque (N.m) | Strping length (mm) |
| JT-50(35) | 150 | 1000 | 16-50 | 6-35 | M8 | 12 | 25/25 |
| JT-70(50) | 192 | 1000 | 25-70 | 10-50 | M10 | 20 | 30/30 |
| JT-70(50) | 232 | 1000 | 25-95 | 10-70 | M10 | 20 | 30/30 |
| JT-120(95) | 250 | 1000 | 16-95 | 16-95 | M10 | 20 | 30/30 |
| JT-150(120) | 353 | 1000 | 25-120 | 25-120 | 2xM10 | 20 | 30/30 |
| JT-185(150) | 353 | 1000 | 35-150 | 25-150 | 2xM10 | 20 | 30/30 |
| JT-240(185) | 400 | 1000 | 35-240 | 25-185 | 2xM10 | 20 | 30/30 |

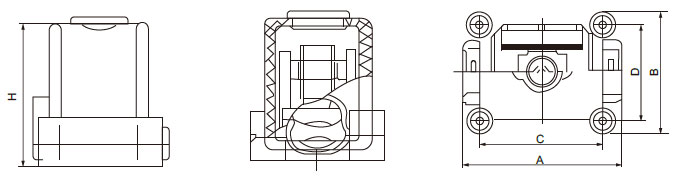

Dimensions
| Type | A(mm) | B(mm) | C(mm) | D(mm) | H(mm) |
| JT-50(35) | 39 | 35 | 29 | 27 | 58 |
| JT-70(50) | 47 | 44 | 35 | 35 | 73 |
| JT-70(50) | 47 | 44 | 35 | 35 | 81 |
| JT-120(95) | 70 | 57 | 57 | 47 | 90 |
| JT-150(120) | 70 | 57 | 57 | 47 | 90 |
| JT-185(150) | 70 | 57 | 57 | 47 | 100 |
| JT-240(185) | 70 | 57 | 57 | 47 | 100 |
