JXF Type Metal Box

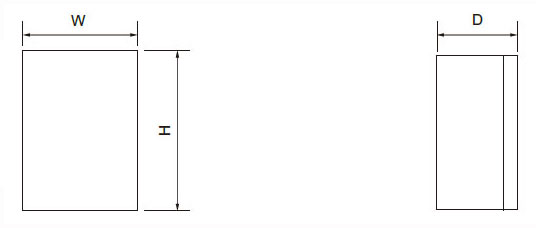

Item No .	Height (mm)	Width (mm)	Depth (mm)	Thickness(mm)(only For Reference)
Item No .	Height (mm)	Width (mm)	Depth (mm)	Door	Body	Scaleboard
JXF-5715	700	500	150	1.2	1.2	2
JXF-5720	700	500	200	1.2	1.2	2
JXF-5725	700	500	250	1.2	1.2	2
JXF-5730	700	500	300	1.2	1.2	2
JXF-6720	700	600	200	1.2	1.2	2
JXF-6725	700	600	250	1.2	1.2	2
JXF-6730	700	600	300	1.2	1.2	2
JXF-6820	800	600	200	1.5	1.5	2
JXF-6825	800	600	250	1.5	1.5	2
JXF-6830	800	600	300	1.5	1.5	2
JXF-6840	800	600	400	1.5	1.5	2
JXF-8820	800	800	200	1.5	1.5	2
JXF-8825	800	800	250	1.5	1.5	2
JXF-8830	800	800	300	1.5	1.5	2
JXF-8840	800	800	400	1.5	1.5	2
JXF6-1020	1000	600	200	1.5	1.5	2
JXF6-1025	1000	600	250	1.5	1.5	2
JXF6-1030	1000	600	300	1.5	1.5	2
JXF7-1020	1000	700	200	1.5	1.5	2
JXF8-1020	1000	800	200	1.5	1.5	2
JXF8-1025	1000	800	250	1.5	1.5	2
JXF8-1030	1000	800	300	1.5	1.5	2
JXF8-1040	1000	800	400	1.5	1.5	2
JXF10-1025	1000	1000	250	1.5	1.5	2
JXF10-1030	1000	1000	300	1.5	1.5	2
JXF6-1220	1200	600	200	1.5	1.5	2
JXF6-1225	1200	600	250	1.5	1.5	2
JXF6-1230	1200	600	300	1.5	1.5	2
JXF8-1220	1200	800	200	1.5	1.5	2
JXF8-1225	1200	800	250	1.5	1.5	2
JXF8-1230	1200	800	300	1.5	1.5	2
JXF8-1225	1200	1000	250	1.5	1.5	2
JXF8-1230	1200	1000	300	1.5	1.5	2
JXF10-1240	1200	1000	400	1.5	1.5	2
JXF12-1225	1200	1200	250	1.5	1.5	2
JXF12-1230	1200	1200	300	1.5	1.5	2
JXF6-1430	1400	600	300	1.5	1.5	2
JXF8-1430	1400	800	300	1.5	1.5	2
JXF8-1440	1400	800	400	1.5	1.5	2
JXF10-1430	1400	1000	300	1.5	1.5	2
JXF10-1440	1400	1000	400	1.5	1.5	2
JXF10-1430	1400	1200	300	1.5	1.5	2
