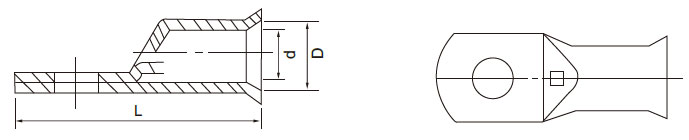

SC(JGB) Copper Cable Lug
| TYPE | Ø | D | d | L |
| SC(JGK)-1.5 | Ø4.2,Ø5.2 | 3.5 | 1.8 | 18 |
| SC(JGK)-2.5 | Ø4.2,Ø5.2,Ø6.2 | 4 | 2.5 | 19 |
| SC(JGK)-4 | Ø5.2,Ø6.2 | 4.8 | 3.1 | 21 |
| SC(JGK)-6 | Ø5.2,Ø6.2,Ø8.2 | 5.5 | 3.8 | 24 |
| SC(JGK)-10 | Ø6.2,Ø8.2 | 6.8 | 4.8 | 25.5 |
| SC(JGK)-16 | Ø6.2,Ø8.2,Ø10.5 | 7.5 | 5.5 | 30.5 |
| SC(JGK)-25 | Ø6.2,Ø8.2,Ø10.5 | 9 | 7 | 34 |
| SC(JGK)-35 | Ø6.2,Ø8.2,Ø10.5,Ø12.5 | 10.5 | 8.2 | 38 |
| SC(JGK)-50 | Ø8.2,Ø10.5,Ø12.5 | 12.5 | 9.8 | 45 |
| SC(JGK)-70 | Ø8.2,Ø10.5,Ø12.5 | 14.5 | 11.5 | 50 |
| SC(JGK)-95 | Ø10.5,Ø12.5 | 17.5 | 13.8 | 55.5 |
| SC(JGK)-120 | Ø12.5,Ø16.5 | 19.5 | 15.5 | 63 |
| SC(JGK)-150 | Ø12.5,Ø16.5 | 21 | 16.5 | 71 |
| SC(JGK)-185 | Ø16.5 | 23.5 | 8.8 | 78 |
| SC(JGK)-240 | Ø16.5 | 26.5 | 21 | 92 |
| SC(JGK)-300 | Ø16.5,Ø20.5 | 30 | 24 | 102 |
| SC(JGK)-400 | Ø16.5,Ø20.5 | 34 | 26.5 | 113 |
| SC(JGK)-500 | Ø16.5,Ø20.5 | 38 | 30 | 123 |
| SC(JGK)-630 | Ø20.5 | 45 | 35 | 135 |
| SC(JGK)-800 | Ø22.5 | 50 | 39 | 170 |
| SC(JGK)-1000 | Ø22.5 | 56 | 44 | 200 |
