SAN Type Panel Box
Surface Mounting

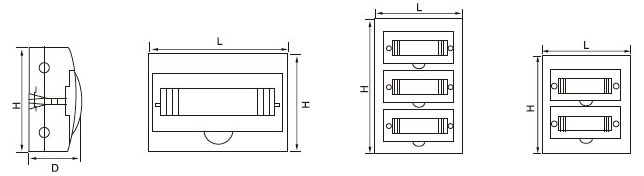

| Item No . | Specification | Dimension | ||
| L | H | D | ||
| SAN-2S | 2 WAY | 90 | 140 | 60 |
| SAN-4S | 4 WAY | 112 | 210 | 100 |
| SAN-6S | 6 WAY | 148 | 210 | 100 |
| SAN-8S | 8 WAY | 184 | 210 | 100 |
| SAN-10S | 10 WAY | 222 | 210 | 100 |
| SAN-12S | 12 WAY | 256 | 210 | 100 |
| SAN-15S | 15 WAY | 312 | 210 | 100 |
| SAN-18S | 18 WAY | 364 | 222 | 100 |
| SAN-24S | 24 WAY(2 line) | 270 | 325 | 100 |
| SAN-36S | 36 WAY(3 line) | 305 | 473 | 100 |
| SAN-45S | 45 WAY(3 line) | 326 | 473 | 100 |
