Pre-insulation Terminal

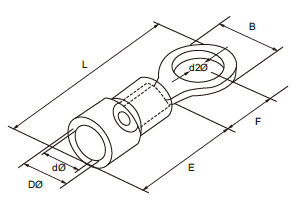

Ring Shape Pre-insulation Terminal
| Item No . | Wire Range mm2 (AWG) | Stud Size | Screw dia. d2Ø(mm) | Dimension (mm) | Color | |||||
| B | L | F | E | DØ | dØ | |||||
| RV 1.25-3.2 | 0.5-1.5 (22-16) | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10.0 | 4.3 | 1.8 | |
| RVS 1.25-3.7 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | |||||
| RVS 1.25-4 | #8 | 3.7 | 8.0 | 21.5 | 7.0 | |||||
| RV 1.25-5 | #8 | 4.3 | 8.0 | 21.5 | 7.0 | |||||
| RV 1.25-6 | #10 | 5.3 | 8.0 | 21.5 | 7.0 | |||||
| RV 1.25-8 | 1/4 | 6.5 | 11.6 | 27.5 | 11.1 | |||||
| RV 1.25-10 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | |||||
| RV 2-3.2 | 1.5-2.5 (16-14) | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | 2.4 | |
| RVS 2-3.7 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | |||||
| RVS 2-4 | #6 | 4.3 | 6.6 | 21.0 | 7.0 | |||||
| RVS 2-5 | #8 | 5.3 | 8.5 | 22.5 | 7.75 | |||||
| RVL 2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | |||||
| RV 2-6 | #10 | 6.5 | 12.0 | 27.6 | 11.0 | |||||
| RV 2-8 | #10 | 8.4 | 12.0 | 27.6 | 11.0 | |||||
| RV 2-10 | 1/4 | 10.5 | 13.6 | 30.2 | 13.9 | |||||
| RV 5.5-3.7 | 4-6 (12-10) | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 12.5 | 6.7 | 4.0 | |
| RVS 5.5-4 | #8 | 4.3 | 7.2 | 21.4 | 5.9 | |||||
| RVL 5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||||
| RV 5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||||
| RV 5.5-6 | 1/4 | 6.5 | 12.0 | 31.5 | 13.0 | |||||
| RV 5.5-8 | 5/16 | 8.4 | 15.0 | 33.7 | 13.7 | |||||
| RV 5.5-10 | 3/8 | 10.5 | 15.0 | 33.7 | 13.7 | |||||
| RV 5.5-12 | 1/2 | 13 | 19.2 | 38.1 | 16.0 | |||||
