Pre-insulation Terminal

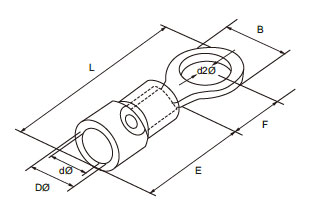

Ring Shape Pre-insulation Terminal (Nylon)
| Item No . | Wire Range mm2 (AWG) | Stud Size | Screw dia. d2Ø(mm) | Dimension (mm) | Color | |||||
| B | L | F | E | DØ | dØ | |||||
| RNY1.25-3.2 | 0.5-1.5 (22-16) | #4 | 3.2 | 5.7 | 18.8 | 4.95 | 11.0 | 4.3 | 1.7 | |
| RNY1.25-3.7 | #6 | 3.7 | 5.7 | 18.8 | 4.95 | |||||
| RNY1.25-4S | #8 | 4.3 | 6.6 | 20.6 | 6.3 | |||||
| RNY1.25-5 | #10 | 5.3 | 8.0 | 22.0 | 7.0 | |||||
| RNY1.25-6 | 1/ 4＂ | 6.5 | 11.6 | 28.0 | 11.2 | |||||
| RNY1.25-8 | 5/16＂ | 8.5 | 11.6 | 28.0 | 11.2 | |||||
| RNY1.25-10 | 3/8＂ | 10.5 | 13.6 | 31.7 | 13.9 | |||||
| RNY1.25-12 | 1 /2＂ | 13.0 | 19.2 | 36.6 | 16.0 | |||||
| RNY1.25-14 | 9/16＂ | 15.0 | 27.0 | 45.5 | 21.0 | |||||
| RNY1.25-16 | 5/8＂ | 17.0 | 27.0 | 45.5 | 21.0 | |||||
| RNY1.25-20 | 3/4＂ | 21.0 | 27.0 | 45.5 | 21.0 | |||||
| RNY2-3.2 | 1.5-2.5 (16-14) | #4 | 3.2 | 6.6 | 20.7 | 6.4 | 11.0 | 4.8 | 2.3 | |
| RNY2-3.7 | #6 | 3.7 | 6.6 | 20.7 | 6.4 | |||||
| RNY2-4S | #8 | 4.3 | 6.6 | 22.2 | 7.9 | |||||
| RNY2-5S | #10 | 5.3 | 8.5 | 23.0 | 7.75 | |||||
| RNY2-6 | 1/ 4＂ | 6.5 | 12.0 | 28.0 | 11.0 | |||||
| RNY2-8 | 5/16＂ | 8.5 | 12.0 | 28.0 | 11.0 | |||||
| RNY2-10 | 3/8＂ | 10.5 | 13.6 | 31.7 | 13.9 | |||||
| RNY2-12 | 1 /2＂ | 13.0 | 19.2 | 36.6 | 16.0 | |||||
| RNY2-14 | 9/16＂ | 15.0 | 27.0 | 45.5 | 21.0 | |||||
| RNY2-16 | 5/8＂ | 17.0 | 27.0 | 45.5 | 21.0 | |||||
| RNY2-20 | 3/4＂ | 21.0 | 27.0 | 45.5 | 21.0 | |||||
| RNY5.5-3.2 | 4-6 (12-10) | #6 | 3.2 | 7.2 | 22.5 | 5.9 | 13.0 | 6.7 | 3.4 | |
| RNY5.5-3.7 | #6 | 3.7 | 7.2 | 22.5 | 5.9 | |||||
| RNY5.5-4 | #8 | 4.3 | 7.2 | 22.5 | 5.9 | |||||
| RNY5.5-5 | #10 | 5.3 | 9.5 | 26.6 | 8.85 | |||||
| RNY5.5-6 | 1/ 4＂ | 6.5 | 12.0 | 29.5 | 10.5 | |||||
| RNY5.5-8 | 5/16＂ | 8.5 | 15.0 | 34.0 | 13.5 | |||||
| RNY5.5-10 | 3/8＂ | 10.5 | 15.0 | 34.0 | 13.5 | |||||
| RNY5.5-12 | 1 /2＂ | 13.0 | 19.2 | 38.6 | 16.0 | |||||
| RNY5.5-14 | 9/16＂ | 15.0 | 19.2 | 38.6 | 16.0 | |||||
| RNY5.5-16 | 5/8＂ | 17.0 | 32.0 | 54.2 | 25.2 | |||||
| RNY5.5-20 | 3/4＂ | 21.0 | 32.0 | 54.2 | 25.2 | |||||
| RNYB8-3.7 | 6-10 (8) | #6 | 3.7 | 8 | 29.3 | 9.3 | 16.0 | 8.0 | 4.5 | |
| RNYB8-4 | #8 | 4.3 | 8 | 29.3 | 9.3 | |||||
| RNYB8-5 | #10 | 5.3 | 8.8 | 29.7 | 9.3 | |||||
| RNYB8-6 | 1 / 4＂ | 6.5 | 12.0 | 31.3 | 9.3 | |||||
| RNYB8-8 | 5/16＂ | 8.5 | 15.0 | 37.3 | 11.1 | |||||
| RNYB8-10 | 3/8＂ | 10.5 | 15.0 | 37.3 | 11.1 | |||||
| RNYB8-12 | 1/2＂ | 13.5 | 20.0 | 41.0 | 15.0 | |||||
| RNYB14-4 | 10-16 (6) | #8 | 4.3 | 12.0 | 40.8 | 13.3 | 21.5 | 11.0 | 5.4 | |
| RNYB14-5 | #10 | 5.3 | 12.0 | 40.8 | 13.3 | |||||
| RNYB14-6 | 1/4＂ | 6.5 | 12.0 | 40.8 | 13.3 | |||||
| RNYB14-8 | 5/16＂ | 8.5 | 12.0 | 43.5 | 14.5 | |||||
| RNYB14-10 | 3/8＂ | 10.5 | 16.0 | 43.5 | 14.5 | |||||
| RNYB14-12 | 1/2＂ | 13.0 | 22.0 | 52.0 | 19.5 | |||||
| RNYB22-5 | 16-25 (4) | #10 | 5.3 | 12.2 | 44.7 | 15.1 | 23.5 | 13.0 | 7.7 | |
| RNYB22-6 | 1/4＂ | 6.5 | 12.2 | 44.7 | 15.1 | |||||
| RNYB22-8 | 5/16＂ | 8.5 | 16.5 | 45.2 | 13.5 | |||||
| RNYB22-10 | 3/8＂ | 10.5 | 16.5 | 45.2 | 13.5 | |||||
| RNYB22-12 | 1/2＂ | 13.0 | 22.2 | 54.0 | 19.5 | |||||
| RNYB38-5 | 35-50 (2) | #10 | 5.3 | 15.3 | 52.0 | 17.4 | 27.0 | 14.5 | 9.4 | |
| RNYB38-6 | 1/4＂ | 6.5 | 15.3 | 52.0 | 17.4 | |||||
| RNYB38-8 | 5/16＂ | 8.5 | 15.3 | 52.0 | 17.4 | |||||
| RNYB38-10 | 3/8＂ | 10.5 | 15.3 | 52.0 | 17.4 | |||||
| RNYB38-12 | 1/2＂ | 13.0 | 22.0 | 55.7 | 17.7 | |||||
