Distribution Block

Modular Distribution Blocks

Connection with or without ferrules
Supplied with insulated back plate and transparent protective front cover, self-extinguishing
Mounting methods:
  1. Fix on din-rail
  2. On plate with 2 screws
When installing under a front plate, a blanking plate can be clipped onto the front plate
Insulation protection each bar
Each bar can be labelled using cab 3TM
Conform to standard EN60947-1
ICC:20kA peak

Item No .

Bus Bar Spec.

No . Of
Bus Bar

Conductors
with starfix
ferrules
X-section
(mm2)

Cond. W/
out ferr.
X-section
(mm2)

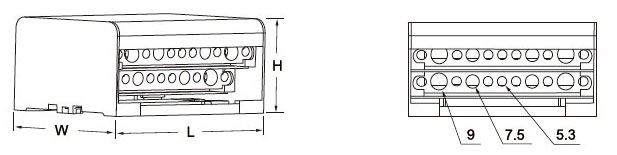

Dimensions
(L×W×H)
(mm)

VC-207

5×φ5.3mm
2×φ7.5mm

2

1.5 to 6
6 to 16

2.5 to 6
10 to 25

65×42×50

VC-211

7×φ5.3mm
2×φ7.5mm
2×φ8.5mm

2

1.5 to 6
6 to 16
10 to 16

2.5 to 6
10 to 25
10 to 35

100×42×50

VC-215

11×φ5.3mm
2×φ7.5mm
2×φ8.5mm

2

1.5 to 6
6 to 16
10 to 16

2.5 to 6
10 to 25
10 to 35

133×42×50

VC-407

5×φ5.3mm
2×φ7.5mm

4

1.5 to 6
6 to 16

2.5 to 6
10 to 25

65×88×50

VC-411

7×φ5.3mm
2×φ7.5mm
2×φ8.5mm

4

1.5 to 6
6 to 16
10 to 16

2.5 to 6
10 to 25
10 to 35

100×88×50

VC-415

11×φ5.3mm
2×φ7.5mm
2×φ8.5mm

4

1.5 to 6
6 to 16
10 to 16

2.5 to 6
10 to 25
10 to 35

133×88×50
