JXF Type Metal Box

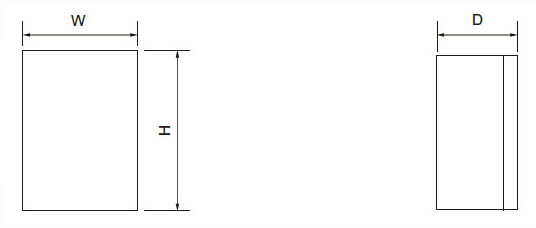

Item No .	Height (mm)	Width (mm)	Depth (mm)	Thickness(mm)(only For Reference)
Item No .	Height (mm)	Width (mm)	Depth (mm)	Door		Body	Scaleboard
JXF-2215	200	200	150	1.2	1.2		2
JXF-2515	250	200	150	1.2	1.2		2
XF-2315	300	200	150	1.2	1.2		2
JXF-2320	300	200	200	1.2	1.2		2
JXF-25315	300	250	150	1.2	1.2		2
JXF-25320	300	250	200	1.2	1.2		2
JXF-25325	300	250	250	1.2	1.2		2
JXF-3315	300	300	150	1.2	1.2		2
JXF-3320	300	300	200	1.2	1.2		2
JXF-3325	300	300	250	1.2	1.2		2
JXF-3415	400	300	150	1.2	1.2		2
JXF-3420	400	300	200	1.2	1.2		2
JXF-3425	400	300	250	1.2	1.2		2
JXF-3430	400	300	300	1.2	1.2		2
JXF-4415	400	400	150	1.2	1.2		2
JXF-4420	400	400	200	1.2	1.2		2
JXF-4425	400	400	250	1.2	1.2		2
JXF-4430	400	400	300	1.2	1.2		2
JXF-3515	500	300	150	1.2	1.2		2
JXF-3520	500	300	200	1.2	1.2		2
JXF-3525	500	300	250	1.2	1.2		2
JXF-3530	500	300	300	1.2	1.2		2
JXF-4515	500	400	150	1.2	1.2		2
JXF-4520	500	400	200	1.2	1.2		2
JXF-4525	500	400	250	1.2	1.2		2
JXF-4530	500	400	300	1.2	1.2		2
JXF-5515	500	500	150	1.2	1.2		2
JXF-5520	500	500	200	1.2	1.2		2
JXF-5525	500	500	250	1.2	1.2		2
JXF-5530	500	500	300	1.2	1.2		2
JXF-4615	600	400	150	1.2	1.2		2
JXF-4620	600	400	200	1.2	1.2		2
JXF-4625	600	400	250	1.2	1.2		2
JXF-4630	600	400	300	1.2	1.2		2
JXF-5615	600	500	150	1.2	1.2		2
JXF-5620	600	500	200	1.2	1.2		2
JXF-5625	600	500	250	1.2	1.2		2
JXF-5630	600	500	300	1.2	1.2		2
JXF-6615	600	600	150	1.2	1.2		2
JXF-6620	600	600	200	1.2	1.2		2
JXF-6625	600	600	250	1.2	1.2		2
JXF-6630	600	600	300	1.2	1.2		2
JXF-4720	700	400	200	1.2	1.2		2
JXF-4730	700	400	300	1.2	1.2		2
