Pre-insulation Terminal

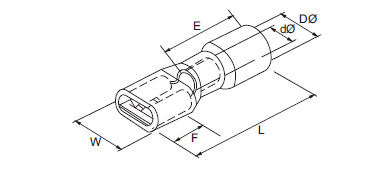

Fully Insulated Female Quick Disconnects
| Item No . | Wire Range mm² (AWG) | Thickness Of Material (mm) | Dimension (mm) | Color | |||||
| W | L | F | E | D | d | ||||
| FDFD1.25-110 | 0.5-1.5 22-16 | 0.30 | 3.8 | 20.0 | 6.4 | 10.0 | 2.7 | 1.7 | |
| FDFD1.25-187 | 0.35 | 5.6 | 20.0 | 6.5 | |||||
| FDFD1.25-250 | 0.40 | 7.4 | 21.5 | 7.9 | |||||
| FDFD2-110 | 1.5-2.5 16-14 | 0.30 | 3.8 | 20.0 | 6.4 | 10.0 | 3.3 | 2.3 | |
| FDFD2-187 | 0.35 | 5.6 | 20.0 | 6.5 | |||||
| FDFD2-250 | 0.40 | 7.7 | 21.5 | 7.9 | |||||
| FDFD5.5-250 | 4-6 12-10 | 0.40 | 7.4 | 25.5 | 7.9 | 14.0 | 4.5 | 3.4 | |
