Terminal Block

Din-Rail-Type-Terminal-Block

Din Rail Type Terminal Block

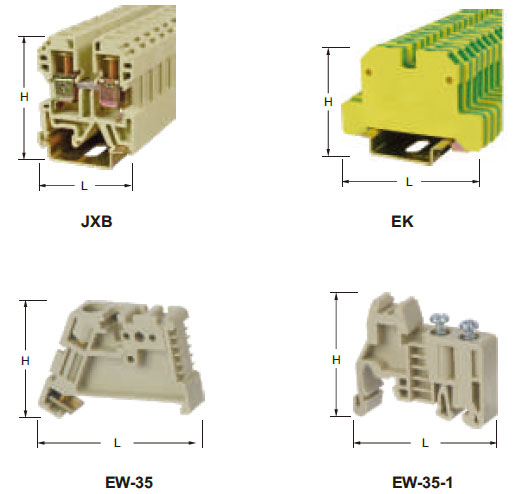

JXB Type Terminal Block

Material:

●Insert: brass
●Plastic: PA

Din Rail Size:35X7.5mm

Item No .	Section size(mm²）	Rated current（A）	Dimension(mm)		Color
Item No .	Section size(mm²）	Rated current（A）	H	L	Color
JXB-2.5/35	0.2-2.5	25	42	41	Grey
JXB-4/35	0.2-4	32	45.5	40
JXB-6/35	0.2-6	41	45.5	40
JXB-10/35	0.5-10	57	45.5	40
JXB-16/35	0.5-16	76	45.5	50
JXB-25/35	6-25	95	53	50
JXB-35/35	10-35	125	63.5	58
JXB-70/35	25-70	192	63.5	75

EK-2.5/35	0.5-2.5	24	44	56	Green and Yelllow
EK-4/35	0.2-4	32	44	56
EK-6/35	0.2-6	41	44	56
EK-10/35	0.5-10	57	44	56
EK-16/35	0.5-16	76	44	56

EW-35	Fixing stop	32	52	Grey
EW-35-1	Fixing stop			Grey

UK Type Terminal Block

UK-2.5B	0.2-2.5	24	42	42.5	Grey
UK-3N	0.2-4	32	47	42.5
UK-5N	0.2-6	41	47	42.5
UK-6N	0.5-10	57	47	42.5
UK-10N	0.5-16	76	47	42.5
UK-16N	6-25	95	47	42.5
UK-35N	10-35	125	62	55

UKH-50	16-50	150	83.5	70.5	Grey
UKH-95	25-95	232	97.5	83
UKH-150	35-150	309	119	100

FJ1 Type Terminal Block

Item No.	Section size(mm²)	Rated current(A)	Dimension(mm)		Color
Item No.	Section size(mm²)	Rated current(A)	H	L	Color

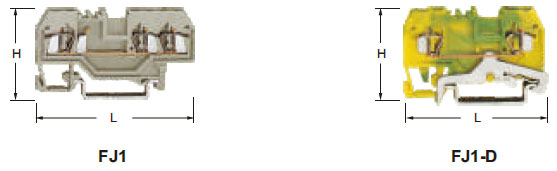

FJ1-1.5 / FJ1-1.5D	0.2-1.5	18	27	52	Grey/Color
FJ1-2.5 / FJ1-2.5D	0.2-2.5	24	28	53
FJ1-4 / FJ1-4D	0.2-4	32	29	59
FJ1--6 / FJ1-6D	0.2-6	41	32.5	74.5
FJ1-10 / FJ1-10D	0.5-10	57	35	78
FJ1-16 / FJ1-16D	0.5-16	76	37.5	94.5
FJ1-35 / FJ1-35D	10-35	125	52.5	115.5

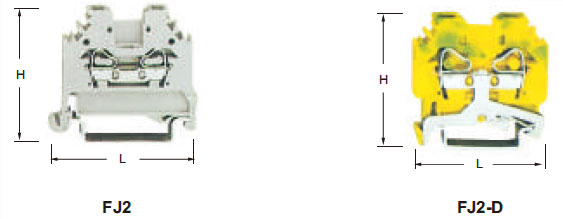

FJ2-1.5 / FJ2-1.5D	0.2-1.5	18	24.5	46.5	Grey/Color
FJ2-2.5 / FJ2-2.5D	0.2-2.5	24	30.5	45
FJ2-4 / FJ2-4D	0.2-4	32	32.5	45
FJ2-6 / FJ2-6D	0.2-6	41	37	46.5
FJ2-10 / FJ2-10D	0.5-10	57	41.5	52
FJ2-16 / FJ2-16D	0.5-16	76	45.5	58

FJ5-1.5	0.2-1.5	18	17	25	Grey
FJ5-2.5	0.2-2.5	24	18	28
FJ5-4	0.2-4	32	23	33.5

ABU2-2.5

0.2-2.5

24

24.5

32

Grey

ABG2-2.5	0.2-2.5	24	24.5	38	Grey
ABG2-2.5 / D	0.2-2.5	24	24.5	38	Color

FJ2R	54	62	Grey
FJ2	54	62	Grey

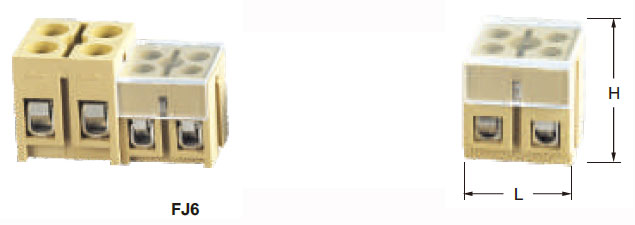

FJ6-2.5	0.5-2.5	24	19.7	18.5	Grey
FJ6-4	1.5-4	41	21.8	23
FJ6-6	1.5-6	41	26.50	26.50
FJ6-10	1.5-10	57	28.50	26.50
