Copper & Alunminium Cable Terminals

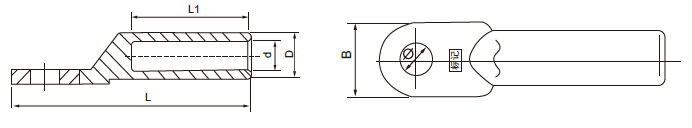

DL Aluminium Connecting Terminals
| TYPE | Ø | D | d | L | L1 |
| DL-16 | 8.5 | 10 | 6 | 70 | 32 |
| DL-25 | 8.5 | 11 | 7 | 75 | 37 |
| DL-35 | 8.5 | 12 | 8.5 | 85 | 40 |
| DL-50 | 10.5 | 14 | 9.8 | 90 | 42 |
| DL-70 | 10.5 | 16 | 11.5 | 102 | 47 |
| DL-95 | 12.5 | 18 | 13.5 | 112 | 50 |
| DL-120 | 12.5 | 21 | 15 | 120 | 53 |
| DL-150 | 14.5 | 23 | 16.5 | 126 | 55 |
| DL-185 | 16.5 | 25 | 18.5 | 133 | 58 |
| DL-240 | 16.5 | 27 | 21 | 140 | 60 |
| DL-300 | 16.5 | 30 | 23.5 | 165 | 65 |
| DL-400 | 21 | 34 | 26.5 | 170 | 70 |
| DL-500 | 21 | 38 | 29.5 | 190 | 75 |
| DL-630 | - | 45 | 34 | 220 | 85 |
| DL-800 | - | 54 | 38 | 250 | 100 |
