Terminal Block
C Type Terminal Block
C series one pole movable terminal posts with 1, 2, 5, 10 pole are suitable for posts with 1, 2, 5,10 pole are suitable for continuity or branching-off connections, between electric conductors.
Technical Data:
●Maximum operating temperature: +85℃
●Heat resistance: +130℃
●Building according to standards: EN60998-1, EN60998-2-1
Materials:
●Insert: Brass
●Screws: Zinc Plated Steel
●Insulating body: Polycarbonate

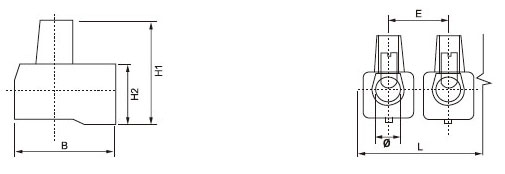

| Item No . | Section size (mm²) | L (mm) | B (mm) | H1 (mm) | H2 (mm) | E1 (mm) | φ (mm) |
| C22 | 2.5 | 120 | 18 | 19 | 11 | 12 | 4.16 |
| C23 | 4 | 121 | 20 | 18 | 10 | 12 | 4.76 |
| C24 | 6 | 145 | 22 | 23 | 12 | 14.5 | 5.83 |
| C25 | 10 | 169 | 25 | 26 | 17 | 17.5 | 7.58 |
| C26 | 16 | 212 | 32 | 33 | 20 | 21 | 10.18 |
