Pre-insulation Terminal
Bullet-shaped Male And Female Full-insulation Terminal (Nylon)
●Size of cable: 0.5~1.5mm (American standard 22~16)
●Max. Current=10A

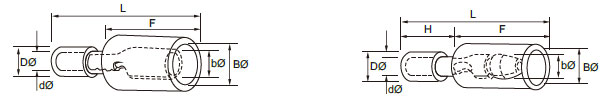

| Item No . | Dimension (mm) | Color | ||||||
| BØ | bØ | DØ | dØ | L | F | H | ||
| FRFNY 1.25-156 | 6.9 | 3.9 | 3.2 | 1.8 | 26.0 | 15.0 | 11.0 | Red |
| MRFNY 1.25-156 | 7.4 | 3.9 | 3.2 | 1.8 | 27.5 | 16.5 | 11.0 | |
●Size of cable: 1.5~2.5mm (American standard 16~14)
●Max. Current=15A
| Item No . | Dimension (mm) | Color | ||||||
| BØ | bØ | DØ | dØ | L | F | H | ||
| FRFNY 1.25-156 | 6.9 | 4.0 | 3.9 | 2..4 | 26.0 | 15.5 | 11.0 | Blue |
| MRFNY 1.25-156 | 7.4 | 4.0 | 3.9 | 2.4 | 27.5 | 16.5 | 11.0 | |
